รายละเอียดสินค้า:
การชำระเงิน:
|
| วัสดุ: | วัสดุโพลียูรีเทนและโครงเหล็กฝัง | ขนาดรูรับแสง: | 0.1 มม. – 130 มม |
|---|---|---|---|
| พิมพ์: | Ws85,แอลเอสซีรีส์ | ความหนา: | 30มม.,40มม.,50มม. |
| ข้อมูลจำเพาะ: | OEM | กำลังการผลิต: | 10,000 ชิ้น / เดือน |
| เพิ่มพื้นที่หน้าจอ: | 50% (สันสามมิติ) | ความแข็ง: | 65 - 91 ชอร์ ก |
| ส่วนต่างแรงดันสูงสุด: | 2180 กิโลปาสคาล | ขนาดฟีดสูงสุด: | 30มม |
| เน้น: | ISO9001 certified polyurethane screen panels,self-cleaning modular screen panels,polyurethane panels for fine aggregate sizing |
||

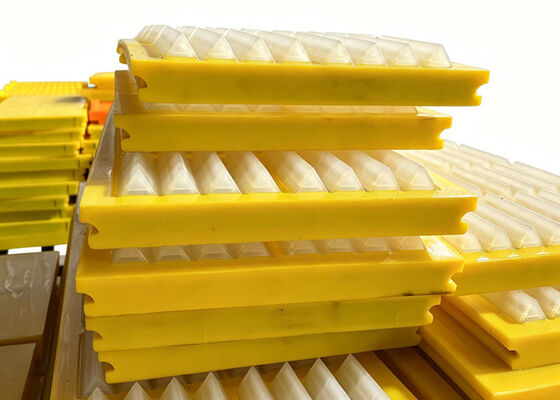

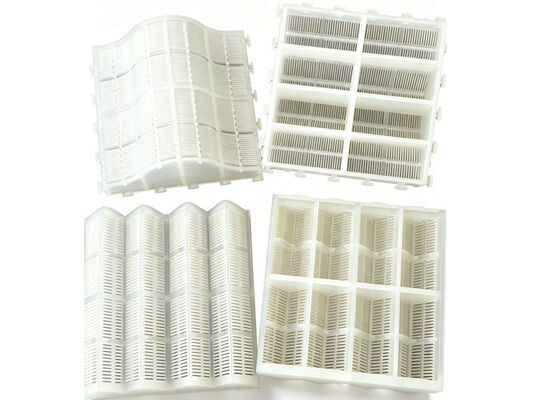

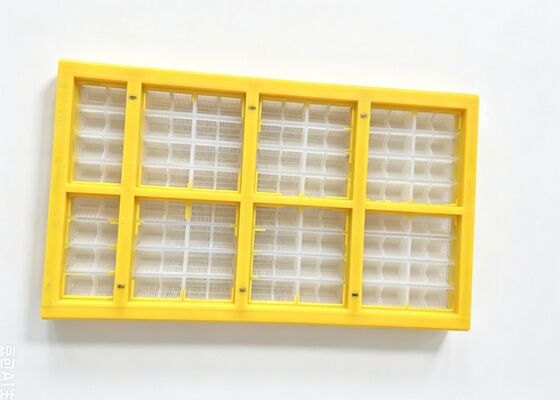

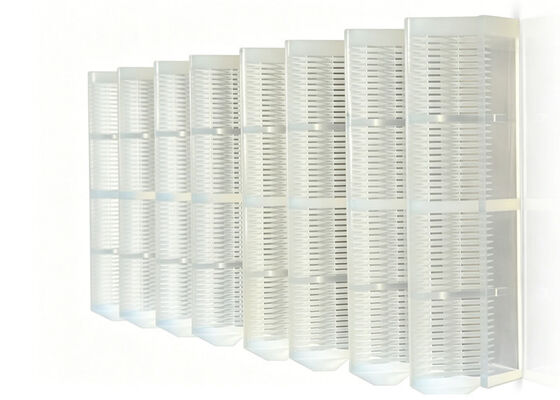

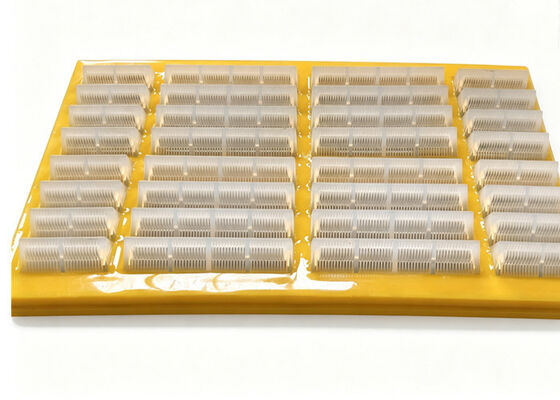

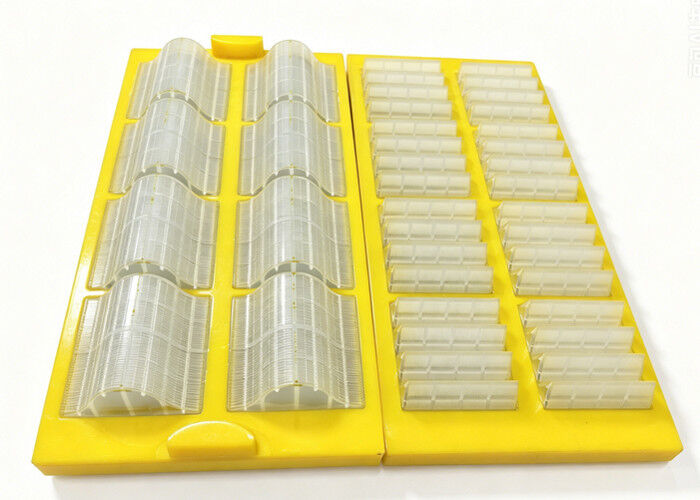

These ISO9001 certified self-cleaning modular polyurethane screen panels are engineered for high-precision sizing in fine aggregate and sand production plants. Manufactured from premium-grade polyurethane elastomer, these panels offer exceptional wear resistance, outlasting traditional metal meshes by 3 to 10 times. The modular design, featuring standard sizes like 305x610mm and 610x610mm, allows for independent replacement of panels subject to localized wear, significantly reducing maintenance costs and equipment downtime. The panels are produced through a rigorous process involving vacuum casting, degassing, and secondary vulcanization to ensure a dense, bubble-free structure with stable chemical and physical performance. With a hardness range of 80-90 Shore A and a tensile strength of ≥ 40 MPa, they can withstand the constant abrasion of sharp-edged minerals. The "self-cleaning" property is achieved through the material's high elasticity, which induces secondary vibrations that effectively eject near-size particles from the apertures, preventing blinding even in damp conditions. These panels are ideal for desliming and fine screening in mining, coal washing, and construction industries, where consistent opening rates (15.25%–46.51%) are critical for product quality. Furthermore, the noise reduction capability of 5-20 dB creates a safer working environment compared to steel screening media.
Please find the applicaiton as below:
* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.
Technical Specifications
| Item | Vibrating Screens PU Screen Panel For Mineral Processing |
|---|---|
| Dimension (L*W) | 300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed |
| Color | Yellow;Red;Orange;Green as regular |
| Thickness | 5mm;30mm;40mm;50mm as regular |
| Warranty | 12 Months |
| Applicable Industries | Energy & Mining |
| Material | Polyurethane with steel frame/MDI/TDI |
| Screen Size | 5mm;30mm;40mm;50mm as regular |
| Cell Type | Slot,Square,Round etc. |
| Connection Type | WS 85; Trellex LS; P-yramid; Rail; etc. |
Our team
Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.
HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.
Q: Can I request a customized size and design?
A: Absolutely! We offer customized.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
